    Grey Power Barrier Terminal Block PBT UL94-V0 Pitch 7.62mm 4-20 Poles

    Ask Lasest Price
    Brand Name : SCED
    Model Number : TB762-04
    Certification : UL,CUL,CQC,VDE,CE etc.
    Price : USD 0.061-0.122 Per Pole
    Payment Terms : T/T, L/C
    Supply Ability : 1000000 Pole/Poles per Month
    Delivery Time : 5-20 days
    • Product Details
    • Company Profile

    Grey Power Barrier Terminal Block PBT UL94-V0 Pitch 7.62mm 4-20 Poles

    Grey Power Barrier Terminal Block PBT UL94-V0 Pitch 7.62mm 4-20 Poles


    Detailed product Description:


    Pitch 7.62mm, 300V 15A, 4*2P-20*2P, Barrier Terminal Blocks, Power Terminal Blocks

    ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

    □Single Level; ■Double levels; □Triple levels

    Standard color: Grey. Other colors also available.


    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

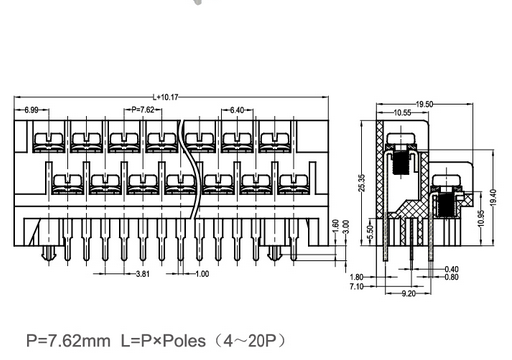

    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current V/A

    300/15


    300/10

    Wire Range AWG

    14-22


    14-22

    IEC Technical Data


    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current V/A

    250 / 24

    320 / 24

    400 / 24

    Rated Surge Voltage KV

    4

    4

    4

    Rated Connecting Capacity mm2

    2.5

    Material


    Insulation Material / Inflammability Class

    PBT / UL94, V-0

    Terminal / Plating

    Brass / Tin Plated

    Screw / Plating

    Steel / Nickel Plated

    Other Data


    PCB Hole Diameter mm

    φ1.5

    Stripping Length mm

    7-8

    Screw / Torque / lbf.in

    M 3 / 5-7


    Competitive Advantage:


    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand
