Brand Name : | SCED |
Model Number : | TR-6N-02 |
Certification : | CE,UL,CUL, CQC, VDE etc. |
Price : | USD 0.015-0.035 |
Payment Terms : | L/C, T/T |
Supply Ability : | 1000000 Pole/Poles per Month |
Delivery Time : | 5-20 days |

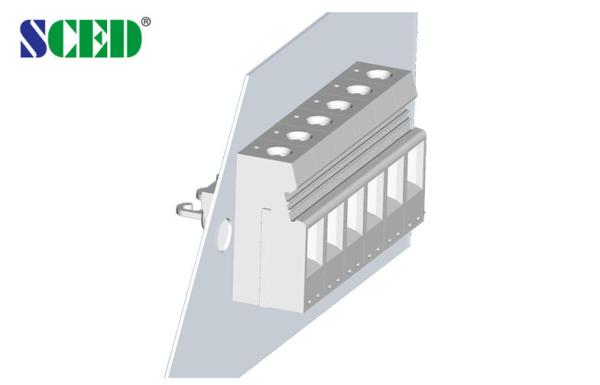

300V 50A PA66 Panel Mount Terminal Block 10mm Terminal Width
Detailed product Description:
Pitch 10.0mm, 600V 50A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey.
Applications:
They can be used in following fileds:
Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power,PCB, Frequency Converters, Server Site, Switch,Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600 / 50 | 600 / 5 | |
Wire Range AWG | 8-26 | 8-26 | |
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 630 / 57 | 830 / 57 | 1000 / 57 |
Rated Surge Voltage KV | 6 | 6 | 6 |
Rated Connecting Capacity mm2 | 1.5 | ||
Material | |||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Clamp Cage / Plating | Brass / Nickel Plated | ||
Conduction Board / Plating | Brass / Nickel Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data | |||
Stripping Length mm | 9 | ||
Screw / Torque / lbf.in | M4 / 10.6-13 |
