    Right Angle Wiring PCB Terminal Block For Frequency Converters

    Ask Lasest Price
    Brand Name : SCED
    Model Number : TJ508-01
    Certification : UL, CE
    Price : Get latest price
    Payment Terms : T/T
    Supply Ability : 1KK poles each monthly
    Delivery Time : 7-21 working days
    • Product Details
    • Company Profile

    Right Angle Wiring PCB Terminal Block For Frequency Converters


    Right Angle Wiring PCB Terminal Block For Frequency Converters


    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
    Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
    Elevator, etc..



    ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
    □Single Deck; ■Double decks; □Triple decks
    Standard color: Green. Other colors also available, please refer to below How to Order and select the color
    you want.

    PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal
    blocks, terminal block manufacturer



    How to order:

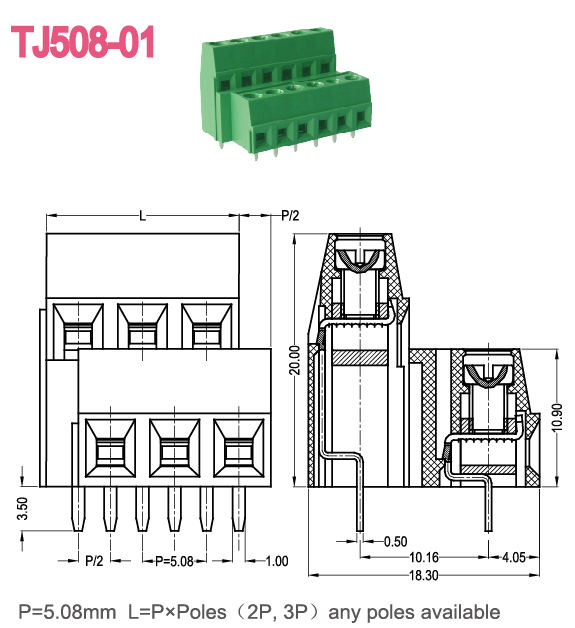

    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current V/A

    300 / 10


    300 / 10

    Wire Range AWG

    12-26


    12-26

    IEC Technical Data


    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current V/A

    250 / 10

    400 / 10

    630 / 10

    Rated Surge Voltage KV

    4

    4

    4

    Rated Connecting Capacity mm2

    1.5

    Material


    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Terminal / Plating

    Brass / Tin Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data


    PCB Hole Diameter mm

    φ1.4

    Stripping Length mm

    6-7

    Screw / Torque / lbf.in

    M3 / 4.4-5.3



    Competitive Advantage:

    We can supply Stable good quality and Competitive price

    Also support quickly response and full range products for selection

    And flexible to design the exact part per customers’ demand

    Detail photo

    Right Angle Wiring PCB Terminal Block For Frequency Converters
