    3.81mm PCB Screw Terminal Block Cage Clamp Euro Electrical Terminal Block 300v

    Ask Lasest Price
    Brand Name : SCED
    Model Number : TJ381-01
    Certification : UL, CE
    Price : Get latest price
    Payment Terms : T/T
    Supply Ability : 1KK poles each monthly
    • Product Details
    • Company Profile

    3.81mm PCB Screw Terminal Block Cage Clamp Euro Electrical Terminal Block 300v


    3.81mm PCB Screw Terminal Block Cage Clamp Euro Electrical Terminal Block 300v


    Parameter:


    UL Technical Data

    B

    C

    D

    Rated Voltage / Current V/A

    300 / 10



    Wire Range AWG

    16-24



    IEC Technical Data


    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current V/A

    160 / 10

    200 / 10

    400 / 10

    Rated Surge Voltage KV

    2.5

    2.5

    2.5

    Rated Connecting Capacity mm2

    1.0

    Material


    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Terminal / Plating

    Brass / Tin Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data


    PCB Hole Diameter mm

    φ1.3

    Stripping Length mm

    4-5

    Screw / Torque / lbf.in

    M2 / 1.8-2.0


    Competitive Advantage:


    Stable good quality

    Competitive price

    Quickly response

    Full range products for selection

    Flexible to design the exact part per customers’ demand


    Applications:


    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

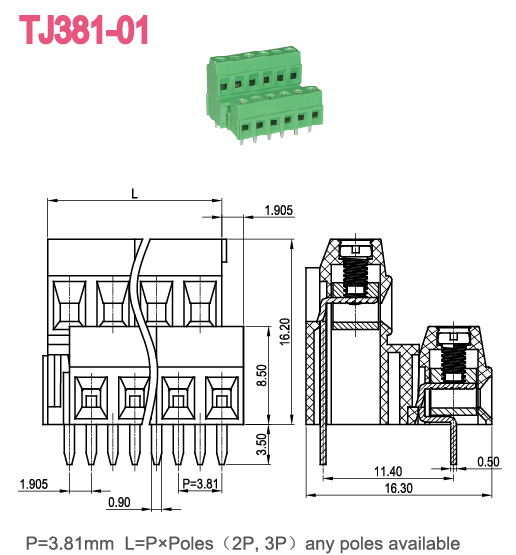

    Drawing Specifications


    TJ381-01


    Detail Photos

    3.81mm PCB Screw Terminal Block Cage Clamp Euro Electrical Terminal Block 300v
