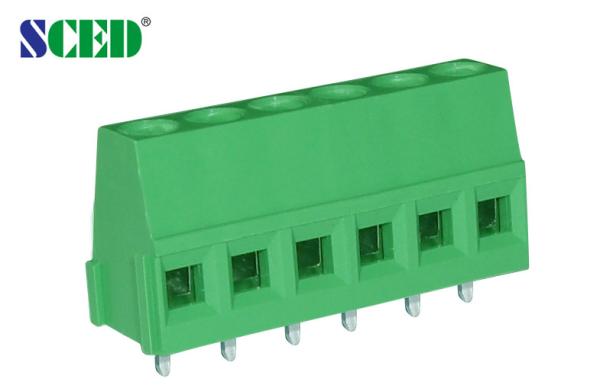

PCB Mount Terminal Block Pitch 5.0mm 300v 10a Brass Clamp Cage Connection

Quick Detail

Pitch: 5.00mm

Poles: 2P-24P

Voltage/ Current: 300V/10A

Wire range: 12-26 AWG

Materials: Plastic housing is PA66 (UL94 V-0)

Operating temperature: -40℃~+105℃

Clamp cage and terminal is high quality brass or copper

Screw is high-quality steel M3

Spec.

1. PCB Euro Terninal Blocks is widely used in industry and automatic control, power, frequency conversion and etc.

2. It is consisted of plastic housing, clamp cage, terminal and screw.

3. It can be stacked to be different poles via 2P and 3P,

4. Wire inlet Direction: 45 90 180degree

4. Materials: Plastic housing is PA66(UL94 V-0) Operating temperature: -40~+105 Clamp cage and terminal is high quality brass or copper screw is high-quality steel

Parameter and Drawing Specifications:

Competitive Advantage:

1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand

Applications:

PCB, Frequency Converters,

Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation,

Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Drawing Photo and Product photo:

SCED is a professional connector product supplier. The company responds to the national call for energy conservation and emission reduction, green consumption reduction, and based on more than ten years of application experience in the power electronics industry, supplemented by high-end connector R&D talents, combined with its own strong manufacturing capabilities, has launched multiple series of connector products, which can provide systematic connection solutions for the power electronics industry.

Relying on the three manufacturing bases in Shenzhen, Suzhou and Anhui and a complete supply chain system, the company can provide customers with the strongest delivery support, the most perfect application experience and the most cost-effective products. The company already has TS16949, ISO9001, ISO14001 certification systems, and has a complete quality control process. The company's products have obtained UL, CCC, TUV and VDE certifications, fully meet the EU ROHS and REACH requirements, and can ensure that customer products can pass through the European and American markets without obstacles.
