Black Din Rail Panel Terminal Block M4 12.00mm 20-10 AWG Wire Range

Quick Detail:

1. Combined to be different positions,
2. Mounted into Din Rail Type
3. Good mechanical properties and electrical performance,
4. They are wire to wire type, we can mount them into different direction, to let the current front in and back out, top in and bottom out, one in one out or one in more out.

Spec.

1. They also can be marked with different labels, assembled with or without protection cover, added with or without all sorts of flat jumpers.
2. Materials: Plastic housing is PC (UL94 V-0), operating temperature: -40℃~+120℃
Conduction board is high quality brass, screw using high quality steel.


Applications:

Frequency Converters,

Server Site,
Power Supply,

Industry Control, Elevator, etc..

Specifications:

Competitive Advantage:

1. Product with CE RoHS

2. Product with reasonable price

3. 24 hours quick reply

4. Many series of Terminal blocks

5. Supply OEM/ ODM

6. Support R&D

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

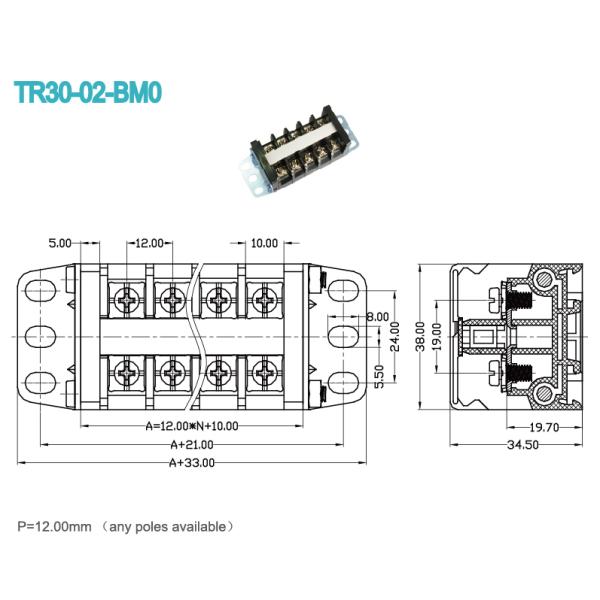

Drawing:

SCED is a professional connector product supplier. The company responds to the national call for energy conservation and emission reduction, green consumption reduction, and based on more than ten years of application experience in the power electronics industry, supplemented by high-end connector R&D talents, combined with its own strong manufacturing capabilities, has launched multiple series of connector products, which can provide systematic connection solutions for the power electronics industry.

Relying on the three manufacturing bases in Shenzhen, Suzhou and Anhui and a complete supply chain system, the company can provide customers with the strongest delivery support, the most perfect application experience and the most cost-effective products. The company already has TS16949, ISO9001, ISO14001 certification systems, and has a complete quality control process. The company's products have obtained UL, CCC, TUV and VDE certifications, fully meet the EU ROHS and REACH requirements, and can ensure that customer products can pass through the European and American markets without obstacles.
