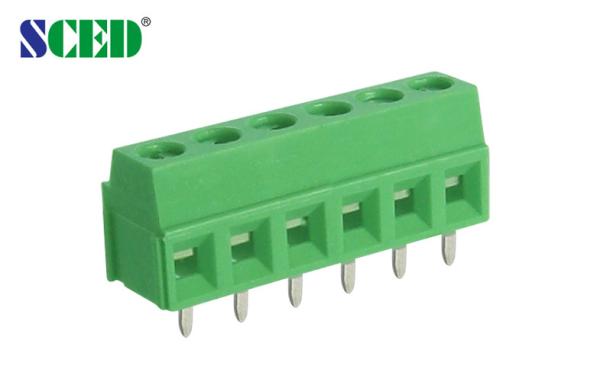

3.81mm Screw Terminal Block 300v 10A Euro Type PCB Screw Terminals Raising Series

    Buy cheap 3.81mm Screw Terminal Block 300v 10A Euro Type PCB Screw Terminals Raising Series from wholesalers

    Buy cheap 3.81mm Screw Terminal Block 300v 10A Euro Type PCB Screw Terminals Raising Series from wholesalers
    • Buy cheap 3.81mm Screw Terminal Block 300v 10A Euro Type PCB Screw Terminals Raising Series from wholesalers

    3.81mm Screw Terminal Block 300v 10A Euro Type PCB Screw Terminals Raising Series

    Ask Lasest Price
    Brand Name : SCED
    Model Number : TJ381-00
    Certification : UL,CUL,CE,CQC,VDE etc.
    Price : USD 0.027-0.054 Per Pole
    Payment Terms : T/T, L/C
    Supply Ability : 1000000 Pole/Poles per Month
    Delivery Time : 5-20 days
    • Product Details
    • Company Profile

    3.81mm Screw Terminal Block 300v 10A Euro Type PCB Screw Terminals Raising Series


    3.81mm Screw Terminal Block 300v 10A Euro Type PCB Screw Terminals Raising Series


    Detailed product Description:


    Pitch 3.81mm, 300V 10A, 2P-28P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

    ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

    ■Single Deck; □Double decks; □Triple decks

    Standard color: Green. Other colors also available, such as Grey, Black, Blue and Yellow etc.


    Applications:

    1. They can be used in PCB, Frequency Converters, Server Site and Switch.

    2. Besides, the industrial of Power Supply, Electric Lighting, Industry Control, Automation and Rail Transportation can use our products as well.

    3. And it also often used in Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current V/A

    300 / 10



    Wire Range AWG

    16-24



    IEC Technical Data


    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current V/A

    160 / 10

    200 / 10

    400 / 10

    Rated Surge Voltage KV

    2.5

    2.5

    2.5

    Rated Connecting Capacity mm2

    1.0

    Material


    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Terminal / Plating

    Brass / Tin Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data


    PCB Hole Diameter mm

    φ1.3

    Stripping Length mm

    4-5

    Screw / Torque / lbf.in

    M2 / 1.8-2.0


    Competitive Advantage:


    1. We can supply stable good quality products with competitive price.

    2. Quick response and good service can be provided.

    3. We have full range products for selection.

    4. Flexible to design the exact part per customers' demand.
