Barrier Type Terminal Block For Power Supply M6 Screw Strip Terminals Connectors

Quick Details:

Pitch: 20.00mm

Poles: 2P-12P

Voltage/ Current: 600V/75A

Wire range: 26-4 AWG

Spec.

1. Multiple Pitch: 7.62mm,8.25mm,8.70mm,9.525mm,10.00mm,11.00mm,
13.00mm,13.50mm,14.50mm,20.00mm,21.00mm

2. With or without cover, one or two rows, from one level to three levels, etc.

3. Materials: Plastic housing is PBT(UL94 V-0)

4. Operating temperature: -40℃~+120℃

5. Clamp cage and terminal is high quality brass or copper screw is high-quality steel

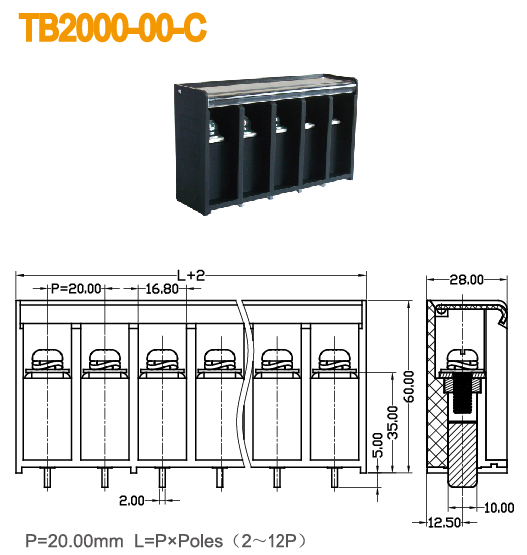

Parameter and Drawing Specifications:

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand

Drawing photo:
