Brand Name : | SCED |
Model Number : | TJ952-03-A1 |
Certification : | UL, CE |
Price : | Get latest price |
Payment Terms : | T/T |
Supply Ability : | 1KK poles each monthly |
Delivery Time : | 7-20 working days |
Connectron PCB Terminal block 600V 30A , pcb mount screw terminals

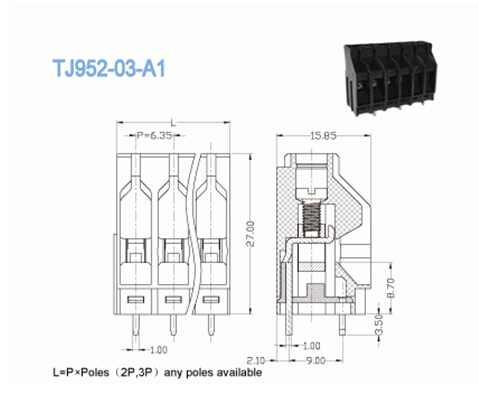

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600 / 30 | 600 / 30 | |
Wire Range AWG | 10-22 | 10-22 | |
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 1000 / 32 | 1000 / 32 | 1000 / 32 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 4.0 | ||
Material | |||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Clamp Cage / Plating | Brass / Nickel Plated | ||
Terminal / Plating | Brass / Tin Plated | ||
Screw / Plating | Steel / Nickel Plated | ||
Other Data | |||
PCB Hole Diameter mm | φ1.6 | ||
Stripping Length mm | 7-8 | ||
Screw / Torque / lbf.in | M3 / 4.4-5.3 |
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
