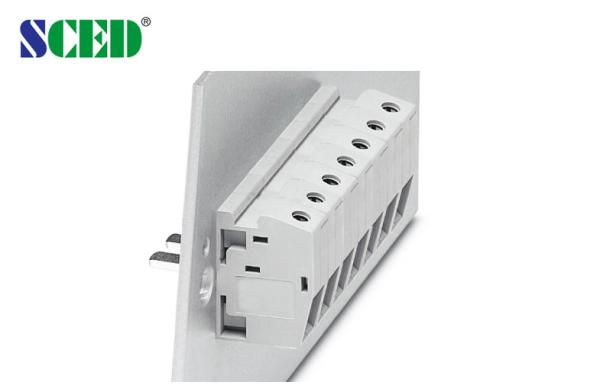

65A Through Panel Terminal Blocks For Electric Lighting Pitch 10.1mm UL CE

    Buy cheap 65A Through Panel Terminal Blocks For Electric Lighting Pitch 10.1mm UL CE from wholesalers

    Buy cheap 65A Through Panel Terminal Blocks For Electric Lighting Pitch 10.1mm UL CE from wholesalers
    • Buy cheap 65A Through Panel Terminal Blocks For Electric Lighting Pitch 10.1mm UL CE from wholesalers

    65A Through Panel Terminal Blocks For Electric Lighting Pitch 10.1mm UL CE

    Ask Lasest Price
    Brand Name : SCED
    Certification : UL, CE
    Model Number : TR-10N-05
    Price : Get latest price
    Delivery Time : 7-20 working days
    Payment Terms : T/T
    Supply Ability : 100K poles each monthly
    • Product Details
    • Company Profile

    65A Through Panel Terminal Blocks For Electric Lighting Pitch 10.1mm UL CE


    65A Through Panel Terminal Blocks For Electric Lighting Pitch 10.1mm UL CE


    How to order:


    Pitch 10.1mm Through Panel Terminal Block for Electric Lighting, 300V 65A, 2P - 24P

    ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
    ■Single Deck; □Double decks; □Triple decks
    Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
    you want.
    Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks,
    terminal block connectors


    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
    Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
    Military, Elevator, etc..


    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current V/A

    300 / 65


    300 / 10

    Wire Range AWG

    6-24


    6-24

    IEC Technical Data


    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current V/A

    630 / 76

    800 / 76

    1000 / 76

    Rated Surge Voltage KV

    6

    6

    6

    Rated Connecting Capacity mm2

    10

    Material


    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Conduction Board / Plating

    Brass / Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data


    Stripping Length mm

    11

    Screw / Torque / lbf.in

    M4 / 10.6-13






    Competitive Advantage:

    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand
