    Right Angle Wire Through Panel Terminal Blocks Connector 230A Pitch 25.0mm

    Ask Lasest Price
    Brand Name : SCED
    Certification : UL, CE
    Model Number : TR-95N-03F
    Price : Get latest price
    Delivery Time : 7-20 working days
    Payment Terms : T/T
    Supply Ability : 100K poles each monthly
    • Product Details
    • Company Profile

    Right Angle Wire Through Panel Terminal Blocks Connector 230A Pitch 25.0mm


    Right Angle Wire Through Panel Terminal Blocks Connector 230A Pitch 25.0mm


    How to order




    ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
    ■Single Deck; □Double decks; □Triple decks
    Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
    you want.
    Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks,
    terminal block connectors


    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
    Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
    Military, Elevator, etc..

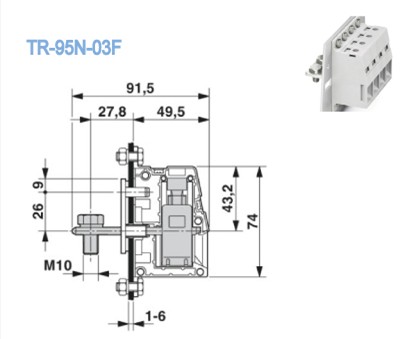

    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current V/A

    600 / 230


    600 / 5

    Wire Range AWG

    4-4/0


    4-4/0

    IEC Technical Data


    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current V/A

    830 / 232

    1000 / 232

    1000 / 232

    Rated Surge Voltage KV

    8

    8

    8

    Rated Connecting Capacity mm2

    95

    Material


    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Steel / Nickel Plated

    Conduction Board / Plating

    Copper / Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data


    Stripping Length mm

    27

    Screw / Torque / lbf.in

    M8 / 132-177






    Competitive Advantage:

    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand
