    Euro Type PCB Screw Type Terminal Block 300V 15A Green 5.08mm Pitch Brass

    Ask Lasest Price
    Brand Name : SCED
    Model Number : TJ508-08V
    Certification : UL,CE
    Price : USD 0.051-0.120 PER POLE
    Payment Terms : T/T, L/C
    Supply Ability : 1000000 Pole/Poles per Month
    Delivery Time : 5-20 Working Days
    • Product Details
    • Company Profile

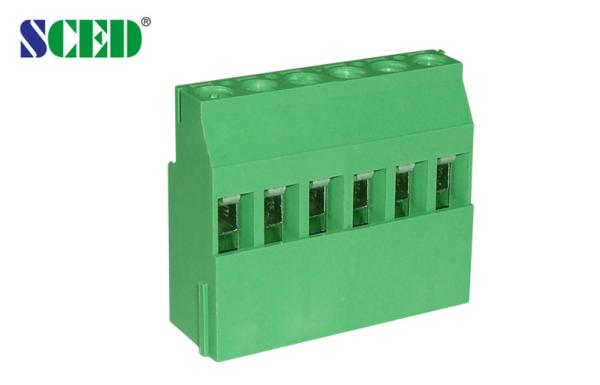

    Euro Type PCB Screw Type Terminal Block 300V 15A Green 5.08mm Pitch Brass

    Euro Type PCB Screw Terminal Block 300V 15A Green 5.08mm Pitch Brass


    Detailed product Description:


    Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

    ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

    ■Single Deck; □Double decks; □Triple decks

    Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.


    How to order:


    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


    Parameter and Drawing Specifications:

    UL Technical DataBCD
    Rated Voltage / Current V/A300/10300/10
    Wire Range AWG12-2612-26
    IEC Technical Data
    Overvoltage Category
    Contamination Class322
    Rated Voltage / Current V/A250 / 10400 / 10630 / 10
    Rated Surge Voltage KV444
    Rated Connecting Capacity mm22.5
    Material
    Insulation Material / Inflammability ClassPA66 / UL94, V-0
    Clamp Cage / PlatingBrass / Nickel Plated
    Terminal / PlatingBrass / Tin Plated
    Screw / PlatingSteel / Zinc Plated
    Other Data
    PCB Hole Diameter mmφ1.6
    Stripping Length mm7-8
    Screw / Torque / lbf.inM3 / 4.4-5.3

    Competitive Advantage:


    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand
